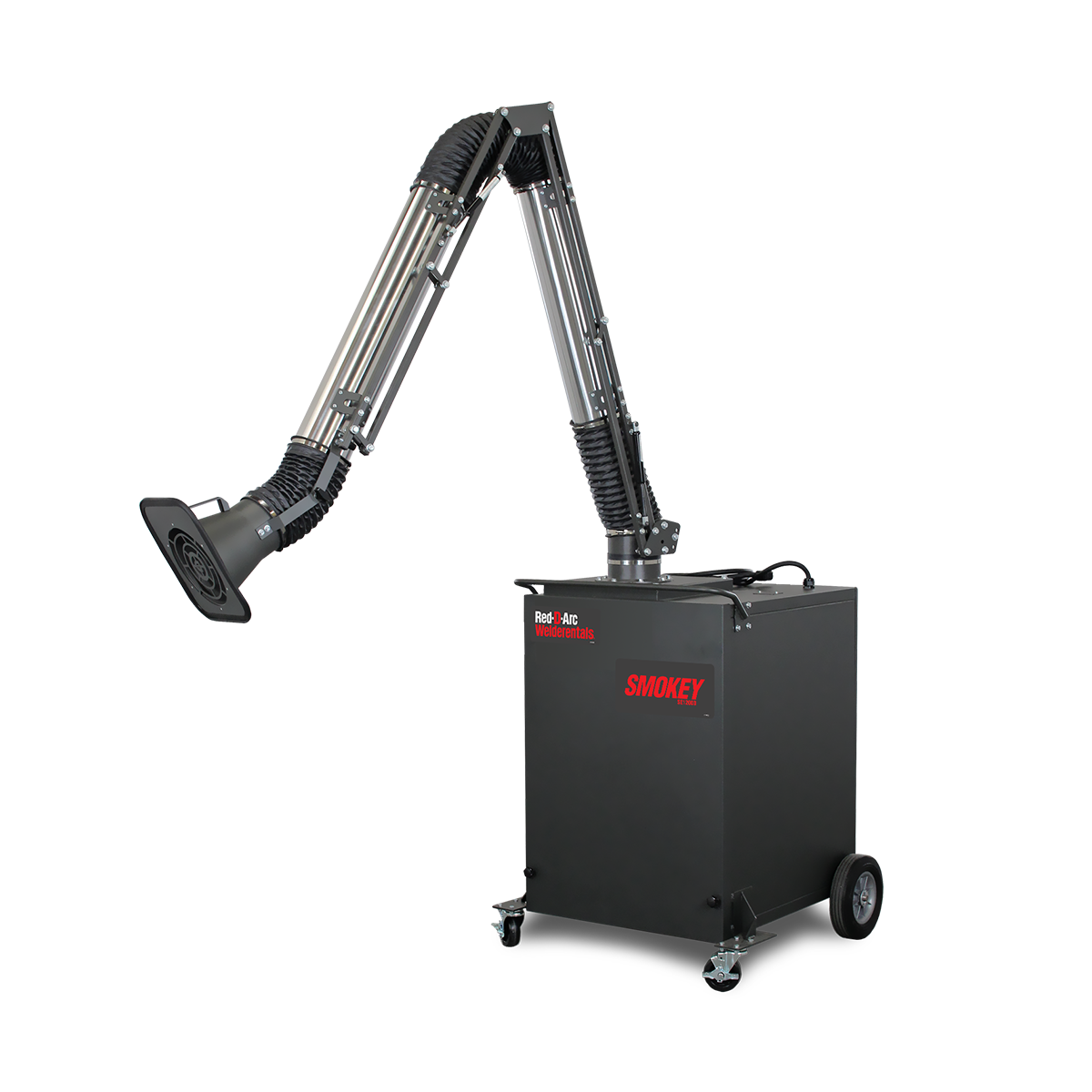

SMOKEY SE1200D Welding Fume Extractor
SMOKEY SE1200D Welding Fume Extractor
Features
- Ideal for Portable or Fixed Use
- 1200 CFM of Suction at the Hood
- Merv 15 Rated Nanofiber Filter
- Capture Contaminants As Small As 0.5 micron
Description
Keeping your worker’s breathing zone safe requires a capture at-source extractor they will actually use. Designed to be moved and positioned effortlessly, the SMOKEY excels at removing weld fumes, dust, and other airborne contaminants.
Heading
| Customer favorites | No |
|---|---|
| Description | SMOKEY SE1200D Welding Fume Extractor |
| Item number | MSmokeySE1200D |
| New | No |
| Product name | SMOKEY SE1200D Welding Fume Extractor |
| Staff favorites | No |
Specifications
| Manufacturer Part Number: | 10018773 |
| Model Number: | SE1200D |
| Air Flow: | 1200 cfm |
| Input Voltage: | 120 VAC,60 Hz |
| Amperage: | 13.2 amps |
| Motor: | 1.5 HP |
| Arm Length: | 10' (3 m) |
| Arm I.D.: | 6" (152.4 mm) |
| Weight: | 194 lb (88 kg) |
| Dimensions: | H: 96" (2438 mm) W: 32.5" (5816 mm) D: 37" (939 mm) |
Additional Features
The SMOKEY SE1200D fume extractor removes weld fumes, dust and other airborne contaminants right as they are produced, it's designed for easy transport and positioning. It has a Merv 15 rated Nanofiber filter that captures airborne contaminants as small as 0.5 micron allowing for cleaner air. SMOKEY’s flexible 10' externally articulated capture arm allows for easy positioning so you can remove contaminants at the source.
The capture arm’s external articulation is key to easy positioning, as smoke and dust passes through the machine without contacting the swivel and pivot points of the arm. The high suction and capture velocity of the SMOKEY allows operators to capture and filter dust and fumes further away from the hood than competitive models.
Keeping your worker’s breathing zone safe requires a capture at-source extractor they will actually use. Designed to be moved and positioned effortlessly, the SMOKEY excels at removing weld fumes, dust, and other airborne contaminants.
Easy-To-Service Filter
Equipped with a Merv 15 rated Nanofiber filter that captures airborne contaminants as small as 0.5 micron, cleaner air is guaranteed. It also complies with OSHA guidelines for controlling weld fumes. Simply remove the filter when full and insert a replacement cartridge. Takes just a couple of minutes.
Super-Flexible
The SMOKEY SE1200D fume extractor is robust, yet the easily maneuverable wheels and handles make for effortless transportation. Add to this the external articulating capture arm, and you have a supremely versatile and flexible filtration unit that can be moved between different work stations.
A Very Profitable Investment
Red-D-Arc welding fume extractors decrease the need for general ventilation as well as the amount of dust in the air. Less dust will give less wear on the machinery, less cleaning in the workshop and in the office, better lighting (dirty lamps), cleaner material handling, higher working tempo and better breathing conditions. Few other investments will cut costs in the same way.
